On a recent project we were testing some scenario’s for the usage of VMware Blast BEAT through Citrix ADC. For some more information regarding Blast see the following article: VMware Blast Extreme Optimization Guide | VMware
Normally you would see that the Citrix ADC setup is an SSL-BRIDGE vserver with accompanying UDP vserver on the same IP for the ports 443 and 8443 which are the default for BLAST and BEAT usage.
There would be situations that port 8443 cannot be used regarding company compliance or restraints that only port 443 is allowed to be used. In this case you would need to change to an SSL-Offloading setup because we can’t intercept any traffic in a SSL-BRIDGE scenario or apply WebSocket usage in a profile.
We need to create an HTTP profile which enables WebSocket connections and we can use on the new SSL-Offloading vservers
Afterwards bind this profile to the SSL-Offloading vservers

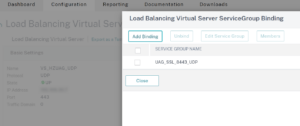

Then we need to change the service group which we use in the UDP vserver to 8443, so the frontend is 443 and the backend is 8443

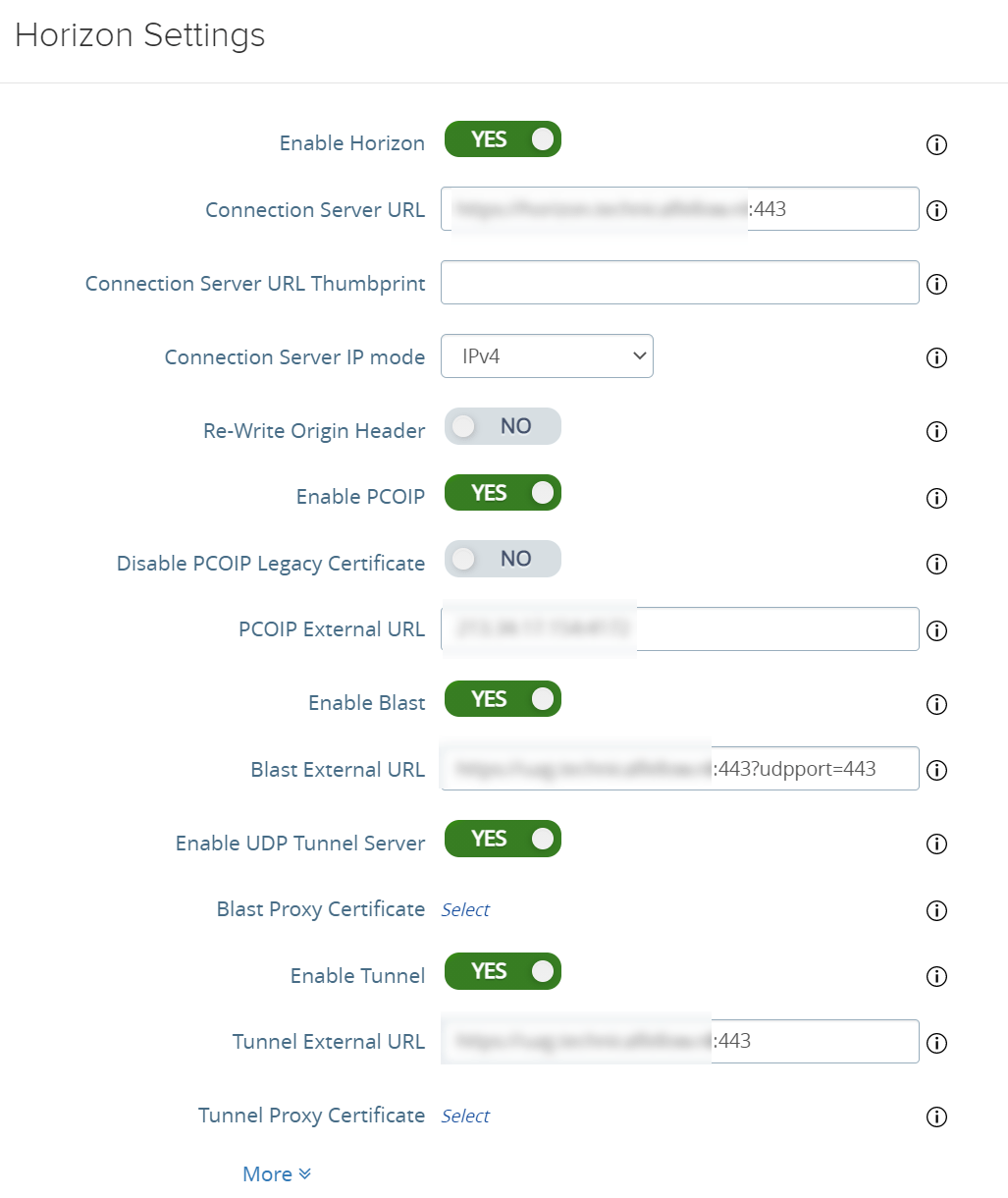

Lastly the changes on the UAG need to be reflected that the firewall connections would also be 443 for TCP/UDP usage and shared services. See the following articles for more information regarding firewall port requirements and alternate setups in the UAG: Firewall Rules for DMZ-Based Unified Access Gateway Appliances (vmware.com) and Blast TCP and UDP External URL Configuration Options (vmware.com)
With this setup you can service everything for the users on port 443. Do keep in mind that port sharing in this way is an excessive CPU load which can seriously impact the setup. See the following article for some clarification: Unified Access Gateway (UAG) high CPU utilization : HTTP 503 error (78419) (vmware.com)
Hope it helps!
